Description

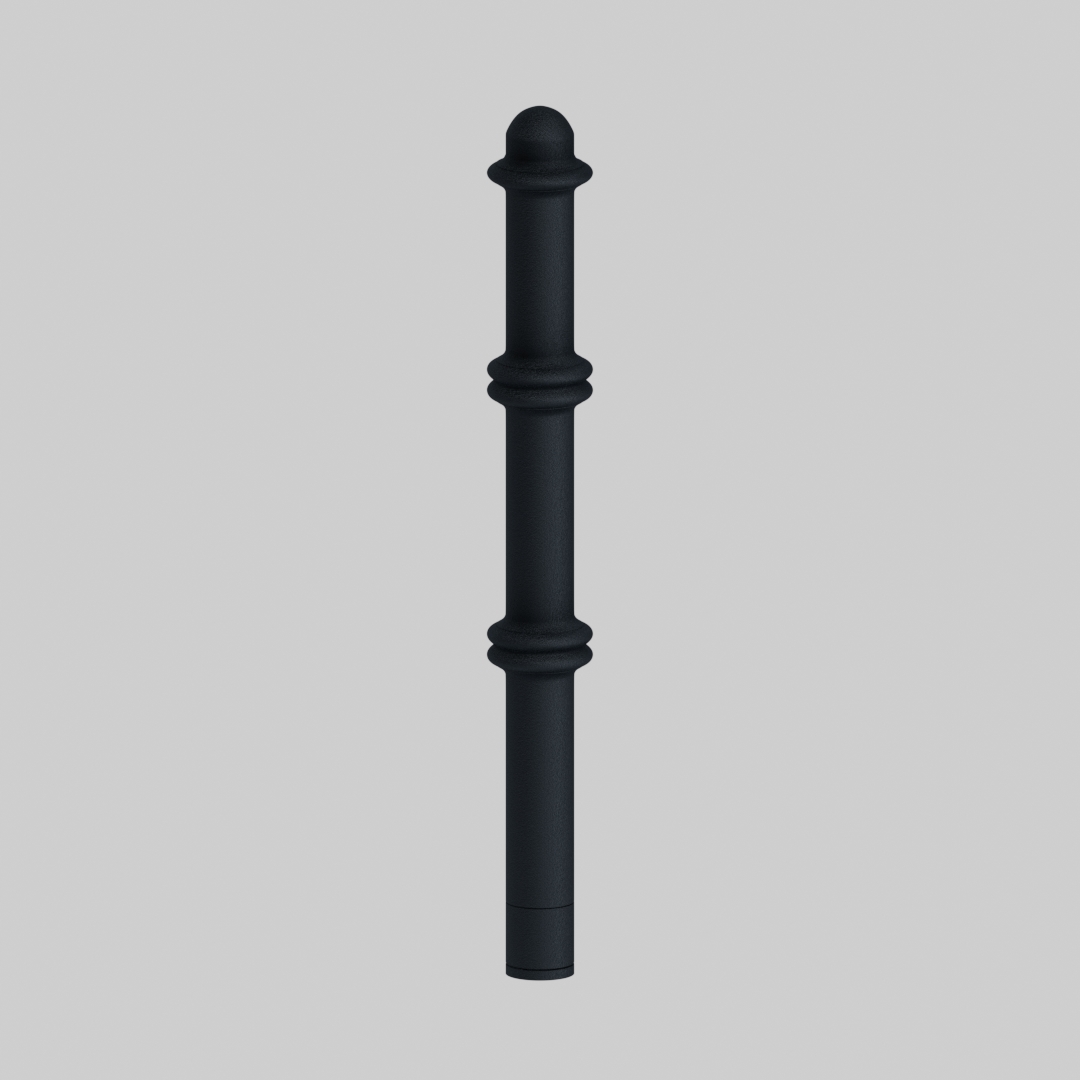

DS Model
The DS bollard, made of galvanized steel and powder coated in anthracite, features a classic design with a cylindrical structure and spherical head. It is ideal for historic contexts, pedestrian areas, public space delineation and the protection of sensitive zones, without compromising urban aesthetics. The slightly textured metallic anthracite powder coating provides a modern and sophisticated look.
Versions available: Augustaflex®, removable, and fixed bollards are all available and can also be combined with each other to create mixed solutions.
Height above ground: 100 cm (standard) or according to customer requirements
Diameter: 60 mm or 76 mm; customizable option on request
Material: galvanized and painted steel / stainless steel (INOX)
Weight, bollards with Augustaflex®
With sleeve for embedding: 11 kg (d60), 17 kg (d76)
With base plate: 13 kg (d60), 17.5 kg (d76)
With sleeve for embedding, removable version: 14 kg (d60), 20.5 kg (d76)
Weight, other versions
Fixed: 4 kg (d60), 5 kg (d76)
Removable: 7 kg (d60), 10.5 kg (d76)
Installation options:
ground sleeve for embedding, anchor plate
The bollard Augustaflex® includes
Bollard with integrated Augustaflex system
Fixing part (ground sleeve / plate)
The removable bollard includes
Bollard with triangular key lock
Ground sleeve
Main features, Augustaflex bollards
Optimal rigidity: Bends only under an impact of 8 kN/m² (d60mm) and 12 kN/m² (d76mm), remaining vertical in case of human interaction. The post immediately returns to its original vertical position after impact.
Downloadable documents
Catalog, Augustaflex® bollards
Removable bollards
Data sheet Augustaflex® bollards, mod
